  LED support with Hagstrom KE72 (pics)
== previous next ==
Pages: [1] | Go Down Reply | Notify of replies | Send the topic | Print
   Author  Topic: LED support with Hagstrom KE72 (pics)  (Read 294 times)
Sasquatch!
Full Member
***

Offline

Posts: 488



Toot-Toot!

View Profile | WWW | E-Mail
LED support with Hagstrom KE72 (pics)
on: February 28, 2003, 06:50:07 PM
Reply with quote

(Brought on by questions raised in this thread.

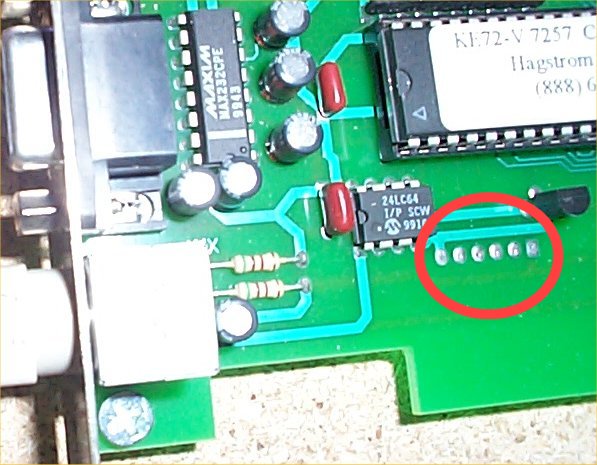

According to Hagstrom, this is the spot where they hook up:


Those solder points - from left to right - are:
GND - SCROLL - NUM - CAPS - (blank / not labeled) - 5V

Their reference card reads:

Quote:
The KE72 also provides for signals for indication of the current state of the Caps Lock, Num Lock, and Scroll Lock LEDs.  These signals are TTL (5V logic) level, and can drive hi-efficiency LEDs through a series resistor.  Drivers may be needed to increase the drive current for LEDs or lights that require more than 1.5ma of current.  These outputs are active (LED on) when low.


I emailed Hagstrom asking if there should be some kind of connectors there. They replied:

Quote:
The KE72 does not have a connector in that location. The reason is so that the end user can "customize" that location for their specific needs. That could mean the use of a connector (there are many different types and styles on the market), wiring directly to the unit, etc.
...
The connector pads are spaced at .100", which is a very standard spacing connector, available in one form or another from every connector manufacturer.  The type we use is the AMP MTA series connectors, available from digikey.com.  Your local Radio Shack would also have headers that could be soldered into that location as well.


The person I was corresponding with also told me that they offer a service where they will attach a connector if the unit is shipped to them.  I asked for details, and was told:

Quote:
Just send it in to us, with a note stating that you would like a connector for the LED control, and be sure to include your return shipping address.  We would charge return shipping ($5.33), and $4.29 (includes parts) for attaching the board connector, mating connector, wires, and current limiting resistors for the LEDs.  We will even run unit though our KE72 tester to be sure it is in perfect working order.  We can ship the unit back within one day of receiving it here.

If you do send your unit in, please send an email notification as well so that we will know when to expect it.



So there ya have it.

Report to moderator   Logged
DZuroff
Full Member
***

Offline

Posts: 22



. . . A wizard arrives precisely when he means to.
2834478 2834478
View Profile | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #1 on: February 28, 2003, 11:49:33 PM
Reply with quote

You beat me to the punch on the post, Sasquatch, but I called Hagstrom today with the same question and received the exact same response and courteous service.  I think the $13.00 (approximate total for shipping both ways and parts) is well worth it to a person like me who has very little soldering skill!

Report to moderator   Logged
MannyTC
Full Member
***

Offline

Posts: 43



Jack Burton... Me!
MannyTC
View Profile | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #2 on: March 01, 2003, 01:06:22 AM
Reply with quote

Dang, you guys got more info than I did and I talked to them a few times about it since last week. Never did they offer to add a connector. Weird.

Anyways, I shipped my KE72 for firmware upgrade to them on Tuesday and I just emailed them to see if they can add the connector before they ship it back to me.

Thanks for sharing the info

Report to moderator   Logged
Sasquatch!
Full Member
***

Offline

Posts: 488



Toot-Toot!

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #3 on: March 01, 2003, 12:51:25 PM
Reply with quote

Quote from: DZuroff on February 28, 2003, 11:49:33 PM
You beat me to the punch on the post, Sasquatch, but I called Hagstrom today with the same question and received the exact same response and courteous service.  I think the $13.00 (approximate total for shipping both ways and parts) is well worth it to a person like me who has very little soldering skill!

You and me both, brother.  I probably could solder SOMETHING there, but it'd be ugly as hell.

Hey MannyTC, what's the firmware upgrade that you're getting for?

Last Edit: March 01, 2003, 12:52:07 PM by Sasquatch! Report to moderator   Logged
RandyT
Full Member
***

Offline

Posts: 388



So many ideas. So little time.

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #4 on: March 01, 2003, 01:43:32 PM
Reply with quote

Quote:
....and can drive hi-efficiency LEDs through a series resistor.  Drivers may be needed to increase the drive current for LEDs or lights that require more than 1.5ma of current.  These outputs are active (LED on) when low.


I just want to give you guys a "heads up" on this.  1.5ma is virtually nothing when being considered for driving LEDs.

Fortunately, the write-up Kelsey so graciously provided for boosting the LEDs on the IPAC should also work for the KE72 as both are "active-low".  You might have to change the value of the resistors that sit between the output of the KE72 and the LED driver board though.

But if you are thinking that sending your KE72 back in for this connector will keep you from having to solder, I'm afraid that won't be the case in the end.  You'll still have more to do afterwards unfortunately.

Just trying to save someone some money in case they didn't quite understand the LED situation with this card.

RandyT

Report to moderator   Logged

When you're done hacking, step up to a KeyWiz Programmable Keyboard Encoder.

Sasquatch!
Full Member
***

Offline

Posts: 488



Toot-Toot!

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #5 on: March 01, 2003, 04:06:02 PM
Reply with quote

Quote from: RandyT on March 01, 2003, 01:43:32 PM
I just want to give you guys a "heads up" on this.  1.5ma is virtually nothing when being considered for driving LEDs.

Fortunately, the write-up Kelsey so graciously provided for boosting the LEDs on the IPAC should also work for the KE72 as both are "active-low".  You might have to change the value of the resistors that sit between the output of the KE72 and the LED driver board though.

But if you are thinking that sending your KE72 back in for this connector will keep you from having to solder, I'm afraid that won't be the case in the end.  You'll still have more to do afterwards unfortunately.

Just trying to save someone some money in case they didn't quite understand the LED situation with this card.

RandyT

Randy,

Thanks for the info.  I'm figuring on still using Oscar's writeup if I go with super-bright LEDs, since his scematic only used the IPAC for controlling (and not powering) the LEDs.

BTW, I know that the KE72 is 1.5ma...what's the IPAC?

My understanding (and please correct me if I'm wrong) is that I would be able to use the KE72 "as is" with standard LEDs (much like the IPAC), but I'd have to have a driver (like Oscar's plan" for super-bright LEDs.  Correct?

Thanks again.

Report to moderator   Logged
RandyT
Full Member
***

Offline

Posts: 388



So many ideas. So little time.

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #6 on: March 01, 2003, 04:12:30 PM
Reply with quote

Quote:
[quote author=Sasquatch! link=board=1;threadid=5322;start=0#35358
BTW, I know that the KE72 is 1.5ma...what's the IPAC?

My understanding (and please correct me if I'm wrong) is that I would be able to use the KE72 "as is" with standard LEDs (much like the IPAC), but I'd have to have a driver (like Oscar's plan" for super-bright LEDs.  Correct?

Thanks again.


I can't answer this with 100% accuracy but from what I know about the hardware driving the IPAC, I'm guessing it puts out at least 10ma, which is quite a bit more than what you are dealing with.

That's why you might have to use different resistors with Oscar's circuit.

If you want to use it "as-is" the LEDs you can use won't have a lot of output.  Also, if you try to overdrive it with brighter LEDs, you can damage the controller.


RandyT

Last Edit: March 01, 2003, 04:15:06 PM by RandyT Report to moderator   Logged

When you're done hacking, step up to a KeyWiz Programmable Keyboard Encoder.

Sasquatch!
Full Member
***

Offline

Posts: 488



Toot-Toot!

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #7 on: March 01, 2003, 04:14:25 PM
Reply with quote

Quote from: RandyT on March 01, 2003, 04:12:30 PM
I can't answer this with 100% accuracy, but from what I know about the hardware driving the IPAC, I'm guessing it puts out at least 10ma, which is quite a bit more than what you are dealing with.

That's why you might have to use different resistors with Oscar's circuit.

AHA!  You're online right now!

But again, isn't Oscar's plan only using the IPAC (in my case, it would be the KE72) for the signaling, and not to power the LEDs?  So why would it matter?

Report to moderator   Logged
RandyT
Full Member
***

Offline

Posts: 388



So many ideas. So little time.

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #8 on: March 01, 2003, 04:19:46 PM
Reply with quote

Quote from: Sasquatch! on March 01, 2003, 04:14:25 PM
Quote from: RandyT on March 01, 2003, 04:12:30 PM
That's why you might have to use different resistors with Oscar's circuit.


But again, isn't Oscar's plan only using the IPAC (in my case, it would be the KE72) for the signaling, and not to power the LEDs?  So why would it matter?


The resistors limit the current going to the transistors.  If the resistance is too high for the weaker output, there might not be enough juice to turn on the transistor.

But then again, it might work fine   You'll have to experiment or do some research.

RandyT

Last Edit: March 01, 2003, 04:32:21 PM by RandyT Report to moderator   Logged

When you're done hacking, step up to a KeyWiz Programmable Keyboard Encoder.

MannyTC
Full Member
***

Offline

Posts: 43



Jack Burton... Me!
MannyTC
View Profile | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #9 on: March 05, 2003, 09:02:48 PM
Reply with quote

Just got an email from Hagstrom and they added in my LED header and upgraded my firmware and shipped it back today. 1 Day turnaround!. Will let you all know how it works when I get it.

Report to moderator   Logged
Tiger-Heli
Full Member
***

Offline

Posts: 884





View Profile
Re:LED support with Hagstrom KE72 (pics)
Reply #10 on: March 06, 2003, 06:04:12 AM
Reply with quote

Quote from: RandyT on March 01, 2003, 04:12:30 PM
I can't answer this with 100% accuracy but from what I know about the hardware driving the IPAC, I'm guessing it puts out at least 10ma, which is quite a bit more than what you are dealing with.


Seems like I read somewhere that I-PAC supports 20mA, I could be wrong also, though!

Report to moderator   Logged
RandyT
Full Member
***

Offline

Posts: 388



So many ideas. So little time.

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #11 on: March 06, 2003, 07:23:44 AM
Reply with quote

Quote from: Tiger-Heli on March 06, 2003, 06:04:12 AM
Seems like I read somewhere that I-PAC supports 20mA, I could be wrong also, though!


Just looked up the specs on the microcontroller.

Maximum input Sink current is 16.5 mA tested @1 Volt.

RandyT

Report to moderator   Logged

When you're done hacking, step up to a KeyWiz Programmable Keyboard Encoder.

Tiger-Heli
Full Member
***

Offline

Posts: 884





View Profile
Re:LED support with Hagstrom KE72 (pics)
Reply #12 on: March 06, 2003, 07:27:10 AM
Reply with quote

Quote from: RandyT on March 06, 2003, 07:23:44 AM
Just looked up the specs on the microcontroller.

Maximum input Sink current is 16.5 mA tested @1 Volt.

RandyT

Maybe it was the MK40 that was 20mA!  (So many encoders, so little time!!!)

Report to moderator   Logged
Sasquatch!
Full Member
***

Offline

Posts: 488



Toot-Toot!

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #13 on: March 11, 2003, 08:30:10 PM
Reply with quote

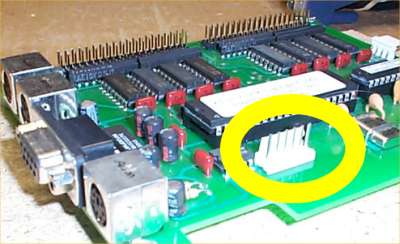

Just got my KE72 back from Hagstrom.  Here's what the plug looks like:

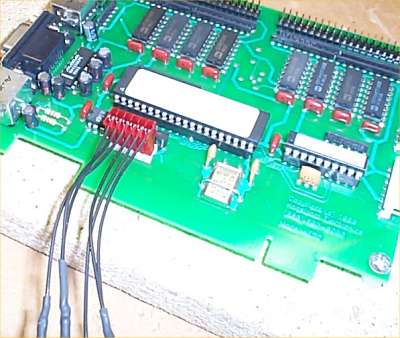

It came with a wiring harness that has 560 ohm 1/4 watt resistors built into the wiring:


I haven't tried it yet...I need to buy me some LEDs.  As a sidenote, my earlier posting that it put out 1.5ma of current was WRONG (even though that was a direct quote from Hagstrom, dammit).  The KE72 puts out 8.0 ma.

Report to moderator   Logged
MannyTC
Full Member
***

Offline

Posts: 43



Jack Burton... Me!
MannyTC
View Profile | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #14 on: March 12, 2003, 01:07:43 AM
Reply with quote

Dang I thought I was going to get to post those pics first! I had sent my unit in 2 weeks ago for other work and the LED header. Looks real good. Can't wait to try mine out tomorrow when it comes.

Report to moderator   Logged
Sasquatch!
Full Member
***

Offline

Posts: 488



Toot-Toot!

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #15 on: March 12, 2003, 02:10:58 AM
Reply with quote

Quote from: MannyTC on March 12, 2003, 01:07:43 AM
Dang I thought I was going to get to post those pics first! I had sent my unit in 2 weeks ago for other work and the LED header. Looks real good. Can't wait to try mine out tomorrow when it comes.

I got the firmware on my upgraded too while it was in.  Unbeknowst to me, upgrading it erased the memory on it.  THANK GOD I still have the CFG file from two years ago.

Report to moderator   Logged
Carsten Carlos
Full Member
***

Offline

Posts: 420



I distance myself from the BYOAC startpage. Sorry.

View Profile | WWW
Re:LED support with Hagstrom KE72 (pics)
Reply #16 on: March 12, 2003, 05:52:07 AM
Reply with quote

Quote:
I can't answer this with 100% accuracy but from what I know about the hardware driving the IPAC, I'm guessing it puts out at least 10ma, which is quite a bit more than what you are dealing with.

That's why you might have to use different resistors with Oscar's circuit.


I designed this circuit/resistor for the I-PAC. You are right, for the KE72 you'll have to use a 3 KOhm-resistor instead of 1 kOhm.
I guess the transistor should work with this low current also, but can't test it out now to verify.

Report to moderator   Logged

Carlos' Centipede extended http://www.retrospieler.de/

Carsten Carlos
Full Member
***

Offline

Posts: 420



I distance myself from the BYOAC startpage. Sorry.

View Profile | WWW
Re:LED support with Hagstrom KE72 (pics)
Reply #17 on: March 12, 2003, 06:02:26 AM
Reply with quote

Quote:
You are right, for the KE72 you'll have to use a 3 KOhm-resistor instead of 1 kOhm.


Sorry, didn't read the correction with the 8mA.

Leave the circuit with 1KOhm, it will work. This way the current is 4.3 mA, no harm for your KE72.

Report to moderator   Logged

Carlos' Centipede extended http://www.retrospieler.de/

Sasquatch!
Full Member
***

Offline

Posts: 488



Toot-Toot!

View Profile | WWW | E-Mail
Re:LED support with Hagstrom KE72 (pics)
Reply #18 on: March 12, 2003, 08:12:45 AM
Reply with quote

Quote from: Carsten Carlos on March 12, 2003, 06:02:26 AM
Sorry, didn't read the correction with the 8mA.

Leave the circuit with 1KOhm, it will work. This way the current is 4.3 mA, no harm for your KE72.

Cool.  Thanks for the info, Carlos!

Last Edit: March 12, 2003, 08:15:07 AM by Sasquatch! Report to moderator   Logged

Pages: [1] | Go Up Reply | Notify of replies | Send the topic | Print
== previous next ==

Jump to:



Login with username, password and session length


Build Your Own Arcade Controls Message Forum | Powered by YaBB SE
2001-2003, YaBB SE Dev Team. All Rights Reserved.

Page created in 0.435 seconds.
